Specifikācijas
Griešanas ātrums: 0-60000mm / min
Atbalstīts grafiskais formāts: DWG, DXF
Pielietojums: lāzera griešana
Stāvoklis: Jauns
Cutting Thickness:0-10mm
CNC vai ne: Jā
Dzesēšanas režīms: ūdens dzesēšana
Izcelsmes vieta: Anhui, Ķīna (kontinentālā daļa)
Model Number:MKC-3015P
Sertifikācija: CE
Laser power:500W /800W/ 1000W / 1500W / 2600W
Function:Metal Cutting
Max cutting round pipe size:200mm diameter
Max cutting cube pipe size:150mm
Laser source:Maxphotonics
Position accuracy:±0.03mm
Garantija: 12 mēneši
Nodrošināts pēcpārdošanas serviss: inženieri ir pieejami servisa iekārtām ārzemēs
Produkta apraksts
Produktu lietošana

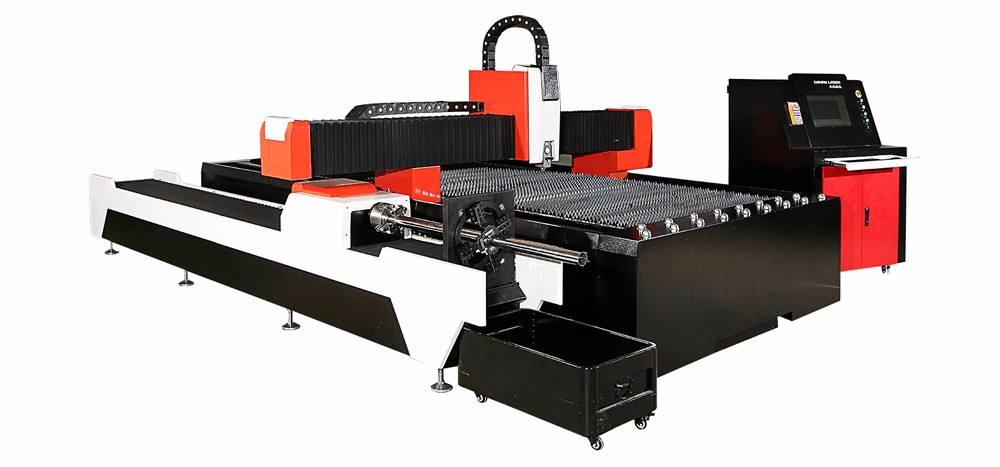

This type of Fiber Laser Cutting Machine is designed for cutting both metal sheet and pipes. Adopted the Taiwan famous screw guide, Yaskawa servo and drive. And the pipe diameter can up to 200mm. It can be customized according to different demands. The unique design with rotary auxiliaries can avoid the technical problems for cutting pipe and sheet at the same time.
Suitable for carbon steel ,mild steel,SS ,aluminum alloy plate and copper plate and other metal.It is suitable for medium and thin thickness material processing.
Applied in sheet metal processing, aviation, aerospace, electronics, electrical appliances, tube fittings, automobile, food machinery, textile machinery, engineering machinery, precision parts, ships, metallurgical equipment, elevators, household appliances, sheet metal processing, kitchen utensils and appliances, craft gifts, tool processing, decoration, advertising, metal processing and other manufacturing industries.
Pipe laser cutting machine parameter |
Machine model | smart KJG-1530D |
Griešanas laukums | 3000 * 1500 mm |
Laser model | Fiber laser - 500W /800W /1000W /1500W/2500W |
Lāzera viļņa garums | 1,070-1,080nm |
Electro-light converting efficiency | 25-30% |
Maksimālais griešanas biezums | 0-20mm (depends on machin power and materials) |
Pipe cutting diameter | 1-200mm |
Width of incision | 0.1-0.2mm |
X/Y/Z stroke | 3025mm/1525mm/100mm |
Pozīcijas precizitāte | ± 0,03 mm |
Repeat position accuracy | ± 0,05 mm |
Max. operating speed | 60000mm / min |
CNC control system | CypCut |
Computer monitor | 21.5"LCD |
Maks. paātrinājums | 0,8G |
Strāvas padeves prasības | 380V 50/60Hz (can be customized) |
Working table max bearing | Approximate 800kg |
Galvenās iezīmes
1. 500w, 800w, 1000w, 1500w, 2000w, 2500w IPG Maxphotonics Raycus fiber optic laser optional
2. Fiber Cutting aluminum, carbon steel, iron, stainless steel, silver, hardware, sheet metal processing, metal tube pipe materials etc
3. China professional manufactuers, best price and quality, can meet CE & FDA & ISO certificates
4. Fiber Cutting thickness 1mm, 1.5mm, 2mm, 3mm, 5mm, 6mm, up to 20mm
5. Metal sheet, round and square tube pipe fiber laser cutting machine, 1500*3000mm
6. Simple structure, very easy to install and maintain
